DID Connect Protocol

DID Connect Protocol is an open protocol that provides a secure and decentralized mechanism for connecting users with DApps by using cryptography technology. In this protocol, we define Connect as the workflow that the user provides answers of the requested claims to the DApp.

This protocol involves following parties:

• User: The end user, usually involed in the workflow by using a Wallet, DID Wallet is a solution provided by DID Labs.
• DApp: The application that provides service to users.
• Relay: Which acts as bridge between the DApp and the User.
• REGISTRY_CHAIN: The decentralized trust authority. ArcBlock provides the ABT chain as the decentralized trust authority.

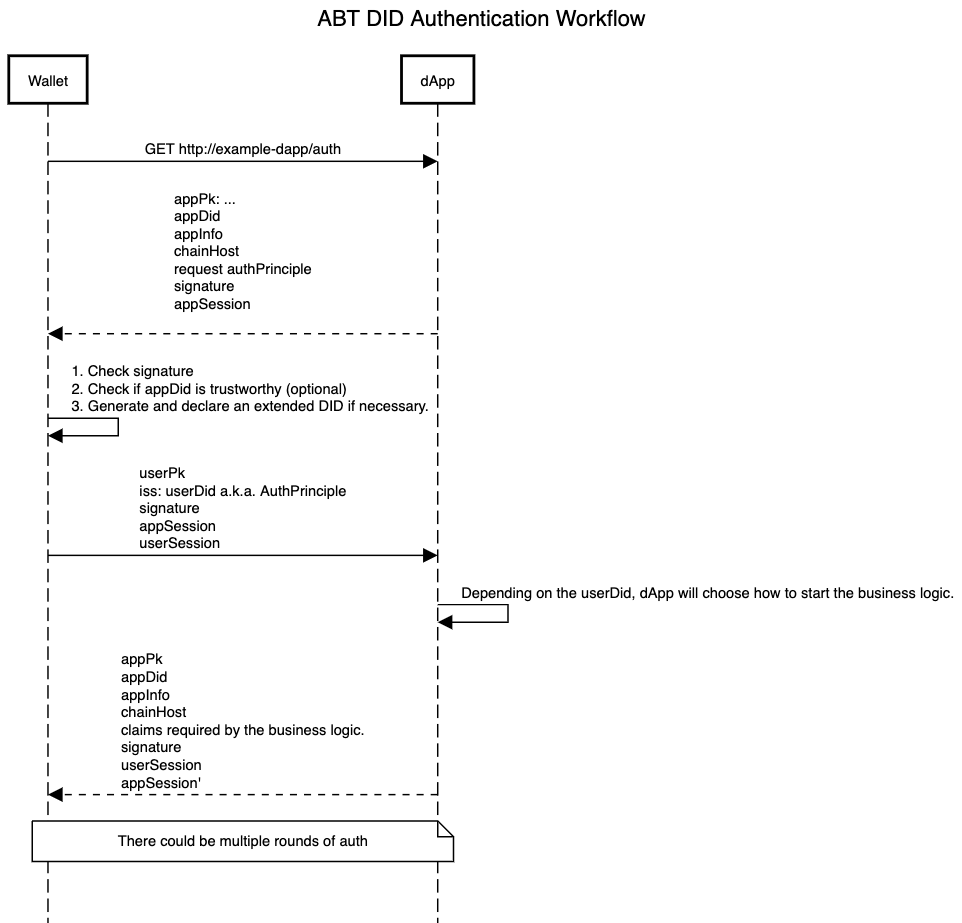

The entire connect workflow contains three processes:

• Pre-knowledge
• Request DID Connect
• Response DID Connect (could be multiple rounds)

Pre-knowledge#

Pre-knowledge refers to the process that user gets the information of a DApp before the real connect starts. DApp can provide the information in a QR code or deep link.

The following is an example of the content of a QR code or deep link.

• linkPath: The linkPath is located at the beginning of the link and is used to locate the Wallet. In this example, the 'linkPath' is https://didWallet.io/i . This part is configurable, and the SDK allows developers to register their domain for their applications.
• • If the QR code is scanned by a third-party camera, e.g. iPhone, Wallet should be open, and the parameters will be passed to Wallet if it is installed. If Wallet is not installed, an installation page should be open. The same behavior applies to the case when the user clicks such a link. The process illustrated above depends on the deep link technology of different platforms such as iOS and Android.
  • If the QR code is scanned by Wallet, Wallet should ignore this section and parse the parameters.
• action: the action Wallet should perform in the next step. Here the action should be requestAuth and the Wallet should use GET method to access the url
• url: a x-www-form-urlencoded URL. Wallet uses this url to start the Request DID Connect process latter.

Request DID Connect#

Request DID Connect is the step that the Wallet actually starts the connect process. The Wallet makes a request to the endpoint pointed by the url obtained from the previous step. The following is the step-by-step break down of what's going to happen of this process:

1. Wallet makes a request to the endpoint.GET https://example-dapp.io/api/connect/relay
2. The response returned by the DApp shall contain following fields:

• appPk: required, the DApp's public key, encoded by Bitcoin Base58.
• agentPk: optional, the public key of the agent that has authorization from an DApp.
• authInfo: required, a standard JWT token.
• appSession: optional, the encrypted information for the DApp to process this connect session. Wallet must return it to DApp with no change. It is up to the DApp to how to encrypt this field. The following is an example response payload.

The header and body part of authInfo displayed above decodes as

• iss: The issuer of this JWT payload. In this example, it is the DApp's DID generated from appPk.
• iat, nbf and exp: Follows the JWT standard.
• version: The version of DID Auth Protocol.
• agentDid: If this payload is signed by an agent with the authorization from another DApp, this should be the agent DID.
• challenge: A 8 bytes random number in hex format that generated by DApp and must be returned unchanged by Wallet, and included when signing the auth response, the DApp should be able to verify that the both the signature and the challenge are correct.
• appInfo: The basic information of this DApp, such as name, description, logo and so on.
• chainInfo: The basic information of this chain. The protocol right now only supports host in side this field.
• url: A must-have field that will be used by the Wallet in Response DID Connect process.
• action: Tells what action should the Wallet perform in next step. Here it should be responseAuth and the Wallet shall use POST method to access the url.
• requestedClaims: The verifiable claims required by the DApp's. In this example, the type of the requested claim is authPrincipal which usually is the first claim required by the DApp in the connect process. This claim means that the DApp is asking the Wallet to set the authentication principal before they can continue to the reset of operations. The authentication principal is the user's DID whose private key shall be used to sign all of the requests sent from the Wallet to the DApp.
• verifiableClaims: The verifiable claims provided by the DApp, Wallet should verify those claims before any furthur processing.

3. After gets the response, the Wallet should do following verifications:
4. 1. Verifies if the iat is later than the request is sent.
   2. Verifies if the response has expired by using exp.
   3. Verifies if the signature matches the appPk and if the appPk matches the appDid in the iss field.
4. (TBD) The Wallet could (may under users' request) ask a registry blockchain for the metadata of the DApp, trustLevel for example. ArcBlock provides ABT chain as a registry chain.
5. (TBD) The trustLevel can be used by the Wallet when displaying requested claims to user. For the DApp whose appDid cannot be found on registry blockchain, the Wallet should make the entire page with high risk mark. If an DApp is asking verifiable claims whose required trust_level is higher than the appDids', the Wallet should display those claims with high risk mark.
6. The Wallet needs to determine the DID to use to set as the authentication principal. If the user has accessed the DApp before, then the Wallet should directly use extended DID as the authPrincipal. Otherwise, the Wallet shall create an Extended DID before any other operations.

Response DID Connect#

This step can be thought of as that the Wallet is answering the questions asked by the DApp through the requestedClaims field and the DApp would possibly return more questions depending on the answers.

After determined the value of the userDid to respond to the DApp, the Wallet shall organize the response just in following format:

• userPk: The corresponding public key of the userDid.
• userInfo: The signed authentication object in JWT format.
• userSession: The encrypted information for the Wallet to process this connect session. DApp must return this filed back to Wallet with no change. It is up to the Wallet to encrypt this part.
• appSession: The encrypted information for the DApp to process this connect session. Wallet must return it to DApp with no change.

Just like the authInfo, the userInfo is also a standard JWT object which can be decoded as follows in this example:

The fields iss means the issuer of this JWT payload. It is also the authentication principal determined in the previous step.

More Response DID Authentication#

After the Wallet set the authentication principal, the DApp could send more claims back to the Wallet depending on its business logic. It is just like a customer manager in a bank could ask a serious of questions before he or she can process the business service for the customer. So let's see another example response that a DApp could return to the Wallet after the first round authentication.

The header and body part of authInfo displayed above decodes as

• meta: An optional field in each requested claim, the Wallet MUST return this field to the DApp without any change.
• description: The description to display to end user.

So in this example, the DApp is asking the Wallet to provide some basic information of the user. The Wallet shall prompt a user to let him or her to finish this claims and send back to the DApp again. We will talk about how to process each type claim in next section.

Ends an Authentication Workflow#

To end an authentication workflow, you can send the last response like this:

Or you can return some error message like:

Send some data back to Wallet to persist:

Concatenate multiple Workflow#

If you hope the Wallet continue to process another workflow after the current one, you can put the deeplink of the next workflow into the last response. For example:

Decline DID Authentication#

In some cases, user may choose to decline the request from the DApp, the Wallet should tell the DApp about user's decline to provide better user experience by setting action field to declineAuth, with an empty requestedClaims field.

Revoke DID Authentication#

TBD

Verifiable Claims#

Verifiable claims is a list of claim item. Different types of claims have some common attributes even though they are designed to server under different scenarios.

• type: This is a must-have field for types of claims items.
• description: The message to display to end users, a must-have field for all types of claims items. The Wallet could omit this field when returning the claims for the sake of network bandwidth.
• meta: An optional field available for all types of claim item. It is up to the DApp to put some information there so that it can easily process the claims sent back from the Wallet. The Wallet MUST return this field in each claim item without any changes.

The supported types of claims are described as follows:

AuthPrincipal#

This is the first claim to ask by the DApp, it is used to informing the Wallet to set the authentication principal for the entire authentication process. The authentication principal is the iss field of the JWT payload sent from the Wallet.

To ask the Wallet to set up authentication principal, the DApp should respond the Wallet with this claim, usually the authPrincipal claim is silent and completed without user notice, but the DApp can ask Wallet to display a connect screen by setting supervised field to true in the claim:

Sometimes a DApp may want the Wallet to prove that it is a specific user. In such cases, the DApp can add the field target in the claim item. The Wallet must set the authentication principal to the specific DID.

Sometimes a DApp may want the Wallet to generate a DID with customized arguments, the DApp can add the following fields in the claim item:

By default all DID are encoded into base58_btc format.

The Wallet shall generate a new DID with targetType settings, and make sure the DID is declared with `declareParams" before answering the claim. The Wallet should just generate the key pair of the DID randomly.

Profile#

Profile is the verifiable claim used to gather users' basic information such as name, email, age and so on. The requested information is put in the items sub-field. For example, when the DApp requires users to provide their first name, mobile phone number and mailing address, it could respond a claim to the Wallet in following way.

The Wallet shall answer this claim in such way:

Please see the appendix for the list of all profile items.

Agreement#

Agreement is another commonly used type of claim. It stands for the agreements that a DApp asks the user to sign. An agreement claim type contains following fields:

• uri: An URI points to the content of the agreement.
• hash: An object where method sub field specifies the algorithm (sha3, sha2 and so on) used, and digest sub field is the hash result.
• agreed: A boolean value added by the Wallet to indicate if the user agrees the agreement.
• sig: The DSA signature of the hash.

When a DApp wants a user to sign agreements, it should add a list of such claim items in the response.

When see this response, Wallet should prompt the user to sign the agreements. Later, the Wallet should submit a list of signed claim items back to the DApp. If the user agrees, Wallet shall add the agreed and the sig field. If the user declines, then the Wallet just need to add the agreed field with value false. No signature is required in this situation.

Asset#

The Asset claim item is used to let the Wallet to provide a on-chain Asset DID to the DApp. Usually the DApp would need to verify the ownership of the Asset against the signature and on chain Asset State. To ask the Wallet to provide an Asset DID, the DApp shall send the claim in following way:

• filters: required field to specify a list of filters for Wallet to select assets, if multiple filters are specified, they should be interpreted as OR, multiple fields inside a filter should be interpreted as AND, multiple values inside a field should be interpreted as OR, each filter can contain any of the following parameters:
• • trustedIssuers: did list of trusted issuers, default to empty list
  • trustedParents: did list of trusted parents, usually this refers to the nft-factory address, default to empty list
  • tag: asset tag for filter, default to empty
  • address: did of the asset, either on-chain or off-chain, default to empty string
• optional: field for user to skip this claim. If optional is true, claim response can be empty. The optional field is false default.

The Wallet shall return the response in following way:

• asset is the address of the on-chain asset owned by the USER, which can be any valid user within the same Wallet.
• ownerDid is the did of the on-chain asset owner, this should always be included because sometimes the owner maybe different from the session userDid
• ownerPk is the public key of the on-chain asset owner, this should always be included because sometimes the owner public key can not be found anywhere else.
• ownerProof is the signature by the on-chain asset owner against the session challenge.

Signature#

Signature is a commonly used claim between the Wallet and the DApp. When the DApp need to guide the Wallet user through a certain business operation, they will probably end up with signing and broadcasting a transaction to the blockchain. In this situation, the DApp usually assembles a transaction and sends to the user and asks for signature. The DApp is supposed to send the origin full payload and the type URL of the transaction to the Wallet so that the Wallet can validate the hash and display transaction to the user.

Besides the common fields among all types of claim items, the Signature claim item has following extra fields:

• typeUrl: The type url of this transaction. This field helps the Wallet to decode and display the raw transaction.
• origin: The Base58 encoded payload of the transaction. This payload should be decoded by using the typeUrl.
• method: The Hash method to use to generate the message digest of the origin. This value should be equal to the hash method in user's DID.
• digest: The message digest of the origin. This is the data that the Wallet signs. Wallet will validate if this digest matches with the origin data.
• display: A visual presentation of what user will get when the transaction is executed.
• sig: The signature to return.

The Wallet shall return the signature in following format:

The list of known typeUrl:

• fg:t:transaction: need Wallet decode the origin to a transaction and sign it.
• mime:text/plain: need Wallet decode the origin to the text and show to user.
• mime:text/html: need Wallet decode the origin to the html content and show to user.
• eth:transaction: need Wallet decode the origin to a json string, the json format:{
"network": 1, // the eth network id
"tx": {
"to": "<eth address>",
"value": "<number string>", // eg: "10000000000000000" => 0.1 ETH
"gasLimit": "<number string>", // eg: 25100, 80000...
"data": "xxxx" // if this is not contract call, just pass empty string
}
}

Wallet will use the json data to create and send a ETH Transaction, before send it Wallet need display the tx detail to user, and let user use password double confirm before finally send it.

prepareTx#

prepareTx is a commonly used when the the DApp needs Wallet to pay certain amount of token to complete a business workflow, the DApp knows which kind of transaction to send, but does not know some parameters to assemble the transaction, the DApp first assembles a partial transaction and the payment requirements and sends them to the Wallet. The Wallet then figure out which accounts should be used to pay for the transaction, and then assembles the complete transaction for display and signing. Upon user confirmation, the Wallet shall submit the complete transaction with signatures to DApp for broadcasting.

Besides the common fields among all types of claim items, the prepareTx claim item has following extra fields:

• partialTx: The Base58 encoded result of the partial transaction. The Wallet shall leave it untouched on submit.
• requirement: The payment requirement of the transaction. The Wallet shall leave it untouched on submit.
• • requirement.tokens: Is a list to specify the required amount of each token address, token address is set to empty for primary token. When set to empty array, means that this transaction does not need any tokens.
  • requirement.assets: Is an object for Wallet to select a list of assets, can filter by address or parent address. When set to empty object, means that this transaction does not need any assets
• finalTx: The Base58 encoded result of the final signed transaction, which can be broadcasted to blockchain without any further operation. The Wallet can change the following fields to create the final transaction:
• • tx.signatures and tx.signature and tx.itx.inputs: if the transaction requires multiple accounts to pay
  • tx.from and tx.delegator: if the transaction requires delegation to complete
• display: A visual presentation of what user will get when the transaction is executed.

The Wallet shall return the final transaction in following format:

Certificate#

The core of a certificate is a JWT token signed by the issuer.

The token payload looks like this:

Verifiable Credential#

This claim is used by DApp to verify that the Wallet holds a valid desired verifiable credential.

• filters required field to specify a list of filters for Wallet to select verifiable credential, if multiple filters are specified, they should be interpreted as OR, multiple fields inside a filter should be interpreted as AND, multiple values inside a field should be interpreted as OR, each filter can contain any of the following parameters:
• • trustedIssuers: did list of trusted issuers, default to empty list
  • type: list of valid verifiable credential types, default to empty list
  • tag: verifiable credential tags, default to empty
  • target: did of the verifiable credential, either on-chain or off-chain, default to empty string
• optional field for user to skip this claim. If optional is true, claim response can be empty. The optional field is false default.

return

What's Presentation

proof is generated same as Verifiable Credential. One Presentation can contains multiple VCs and it have to provide multiple proofs( if VC comes from different DID). And the challenge come from did-auth JWT.

The proof‘s structure is

signature is signed by VC holder's private key.

Use Cases#

The DID Connect protocol is a generic peer-to-peer protocol that can be used in any case where authentication is required. It can be used in but is not limited to following scenarios:

• User registration.
• User logon.
• Signing documents.
• Requesting/issuing certificate.
• Applying for VISA.
• Peer-to-peer information exchange.
